AeroShare Kit

AeroShare
Size
  • TX
  • RX
  • Plug and play, No installation
  • Compatible with any HDMI device
  • Enterprise Information Security, safe transmission
  • Display up to 4 different sources on the same screen
On-line introduce Arrange a ues

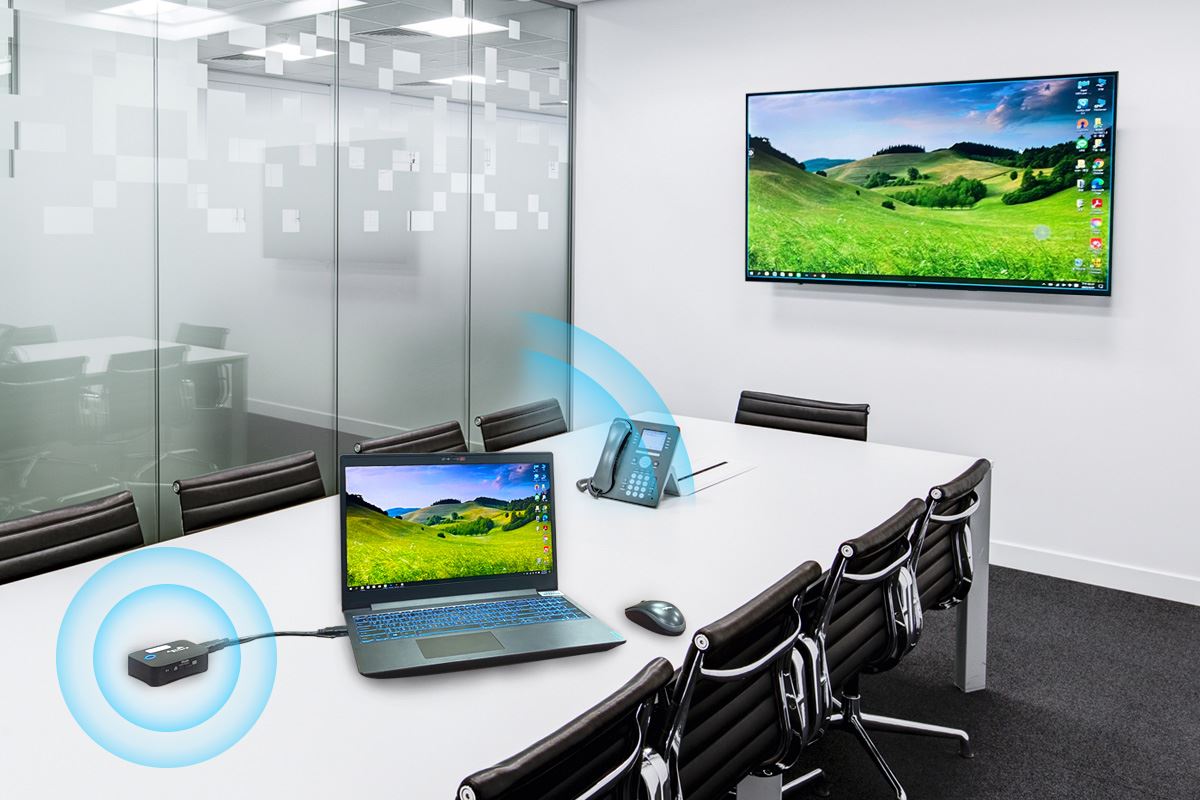

AeroShare™ an Interactive Flat Panel Display without additional learning to plug and play. Even in an environment without basic network equipment, AeroShare can be used by employees and guests quickly and easily, eliminating complicated configuration procedures and making meetings more convenient. Efficiency, bringing easy conception and efficient collaboration to enterprises.

  • Certification |

  • subscribe
  • subscribe
  • subscribe

  • OS |

  • subscribe
  • subscribe
  • subscribe
  • subscribe

  • TX x2
  • RX x1
  • Storage Box x1
  • Power Cablex1
  • Quick Start Guide x1
  • AC transformer x1 (with EU, US, UK adapters)
  • HDMI Cable 20cm x2 (HDMI Type-A to A)
  • HDMI Cable 3m x1 (HDMI Type-A to A)
  • USB Cable 20cm x2 (USB Type-A to MicroUSB)

  • TX x2
  • Storage Box x1
  • HDMI Cable 20cm x2 (HDMI Type-A to A)
  • USB Cable 20cm x2(USB Type-A to MicroUSB)

(TX)

(RX)

  • Plug and play, No installation
  • Cross-platform operating system
  • Compatible with any HDMI device
  • Support touch back control
  • 4 split screen
  • Enterprise Information Security, safe transmission

※The product function and appearance are subject to the actual product. If the specifications are corrected, no further notice will be given!

AeroShare Kit
Video Output HDMI 1.4a
Output Resolution 1920x1080
input Resolution 1920x1080
Connections MAX. 64*
Connection Distance MAX. 10m/1000cm*
Operation Temperature -5℃～45℃
Operation Humidity 20%~80% RH
Storage Temperature -20℃~60℃
Storage Humidity 5%~93% RH

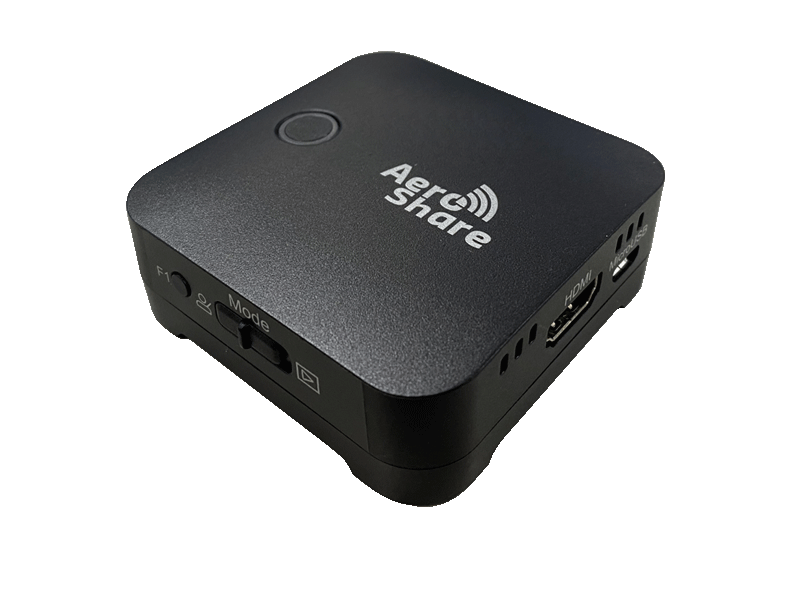

AeroShare (TX)
Wi-Fi 802.11 b/g /n 2.4G 2T2R
Port MicroUSB, HDMI Type-A
Button Mode Meeting mode / Audio mode
Power Supply 5V/900mA
Dimension (WxHxD) 70x70x20mm
LED Light Red Light=Not connected
Green Light=Waiting for connection
White Light=Playing

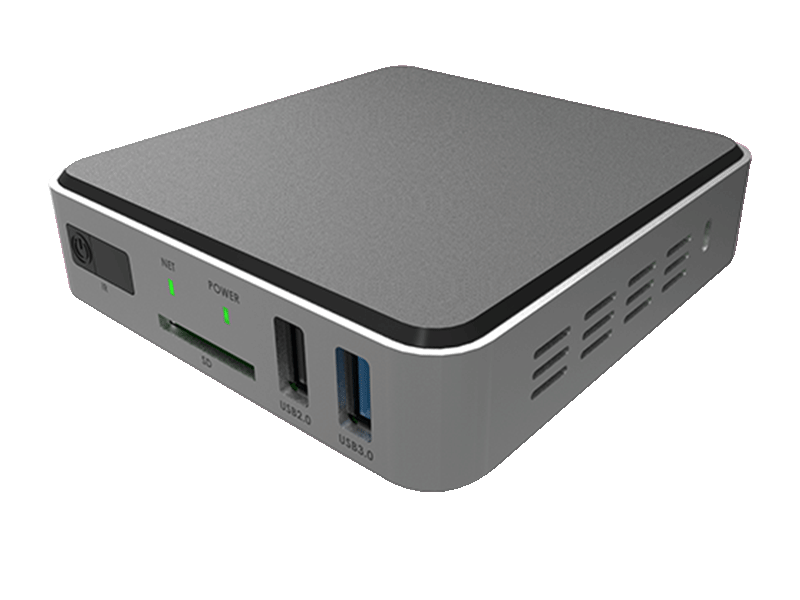

AeroShare (RX)
Wi-Fi 2.4G/5G 802.11ac/a/b/g/n
Port
USB 2 (USB 2.0x1+USB 3.0x1)
HDMI input 1
HDMI output 1
Power Power DC Jack (2.5mm)
LAN 1 (RJ45)
SD Card Slot 1
Dimension (WxHxD) 100x106x25mm
Power input 5V2.5A
Button Power Key
The following are product notes:
1. Before using the product, please carefully read the safety history book in the accessory box and keep it for future reference.
2. Please use the power cord and accessories provided with the product.
3. Do not bend, twist or pull the power cord forcibly.
4. For the installation method, please follow the "Wall Mounting Installation Instructions" in the wall mounting bracket for installation.
5. If the product is not used for a long time, please turn off the power and remove the plug.
6. In order to avoid fogging of the product, please put the product in the same space (without power on) for 1 to 2 hours, let the temperature/humidity of the product be close to the temperature/humidity of the space before turning on the product.
