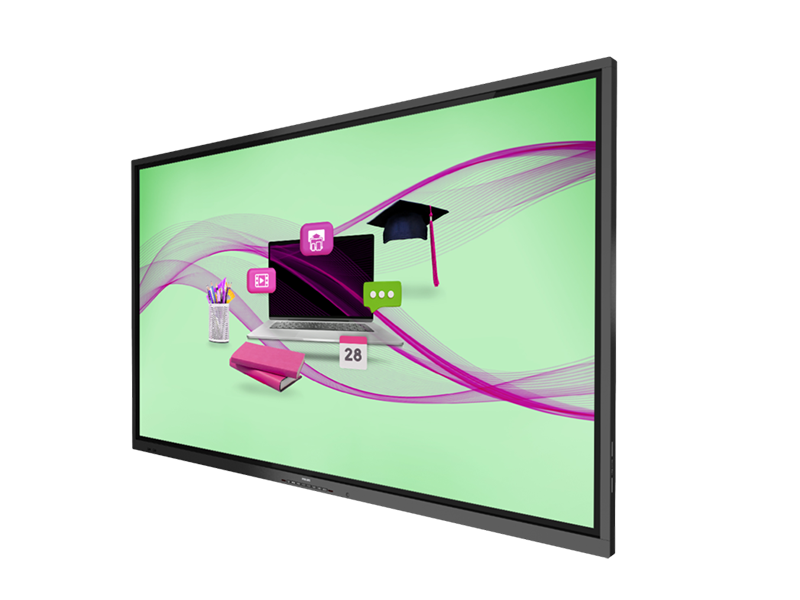

65BDL4052E/00

65BDL4052E/00
Size
  • 65

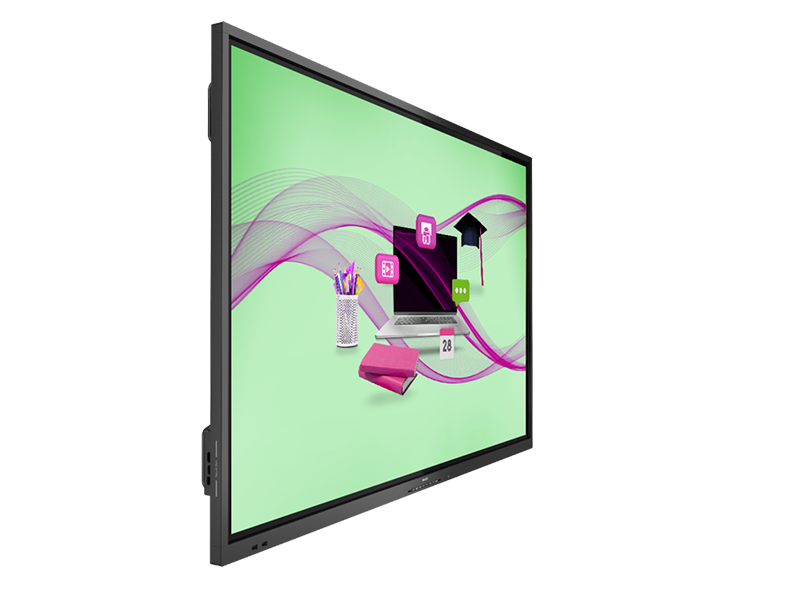

Inspire collaboration. Maximise engagement. This top-spec Philips E-Line touch display is powered by Android and features enhanced educational software and programs compatibility, 20 touchpoints and a toughened anti-glare glass.

E-line Masthead 02

Harness the full power of this display

This product is Wave ready. Giving you the opportunity to manage your Philips professional display remotely and unlocking its full potential – combining energy, time and cost savings, powerful in-house and partner apps, and intuitive content creation – all with PPDS Wave.

Education

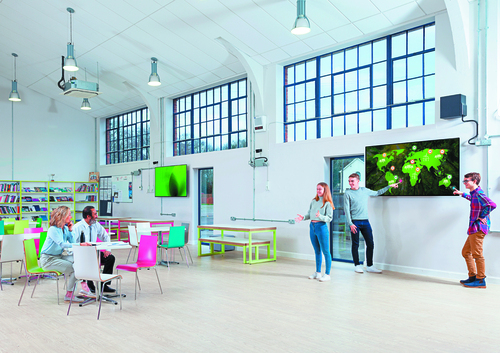

Secondary-SixthForm Classroom

Education

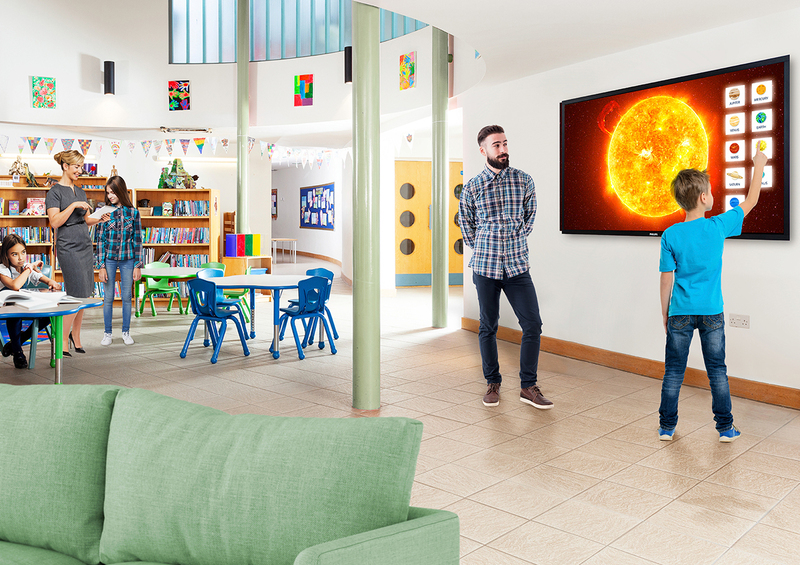

Set a higher benchmark and lead a smarter classroom. The brilliantly designed E-Line boasts an anti-glare and anti-reflection 4K screen, including blue light filter on 4052E models, to ensure your content is always the focal point in any lighting condition. It’s equally as impressive on the inside, with a plethora of features that will enable students to design, invent, collaborate and translate their ideas for the real world.


E-line Masthead 02

E is for Education

Create a classroom that revels in learning. The Philips E-Line education display supports teachers, lecturers and instructors across all disciplines with intuitive technology that can awaken learners’ curiosity and inspire imagination.

Built on an Android SoC platform for a truly intuitive user experience, and featuring multi-touch technology and whiteboard mode, this innovative touch screen has been designed together with educators, especially for education.

Small image 01

Your complete classroom solution

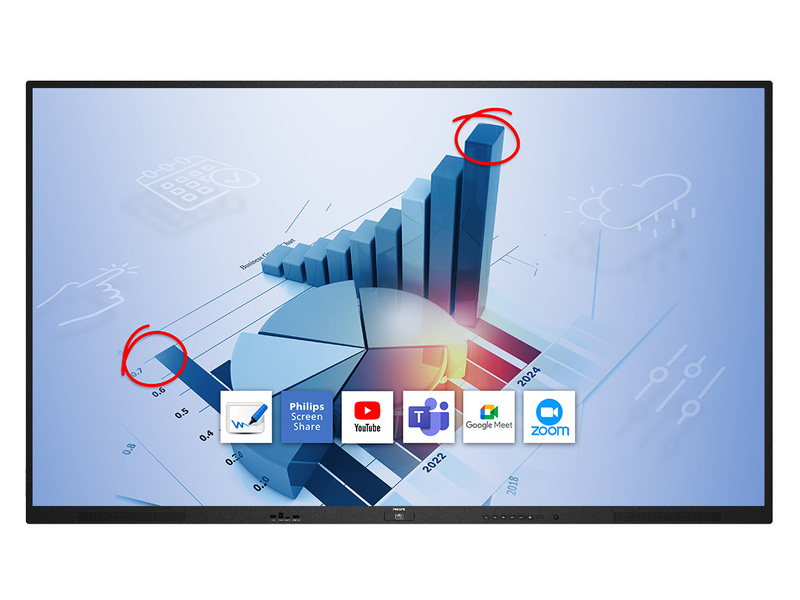

Your Philips E-Line delivers wireless screensharing for up to 64 devices, a built-in Chromium web browser and an interactive whiteboard, as well as access to i3Learnhub software. And options for third party videoconferencing, a blue light filter, and more.

Complete with all the features and applications needed to deliver effective, efficient and engaging lessons and lectures in the classroom, the E-Line is a great solution for students and educators in a hybrid, distance and flex-learning environment, too.

E is for...

Small image 07

...evolutionary

Evolve education into future focused learning. Bring the technology students will use in business, into education.

Small image 09

...energising

Inspire imagination and teach smarter. Energise brilliant thinking through connectivity, creativity and collaboration.

Small image 08

...engaging

Awaken academics and collaborate better. Connect up to 64 devices at the same time for real focus from all students.

E-LINE

Evolve your education setting with all the latest features

C_Line

Whiteboard mode

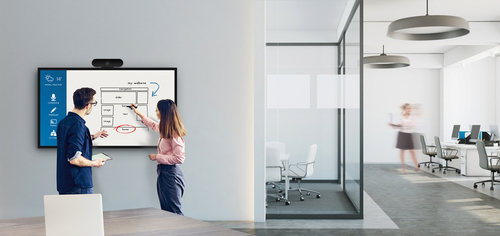

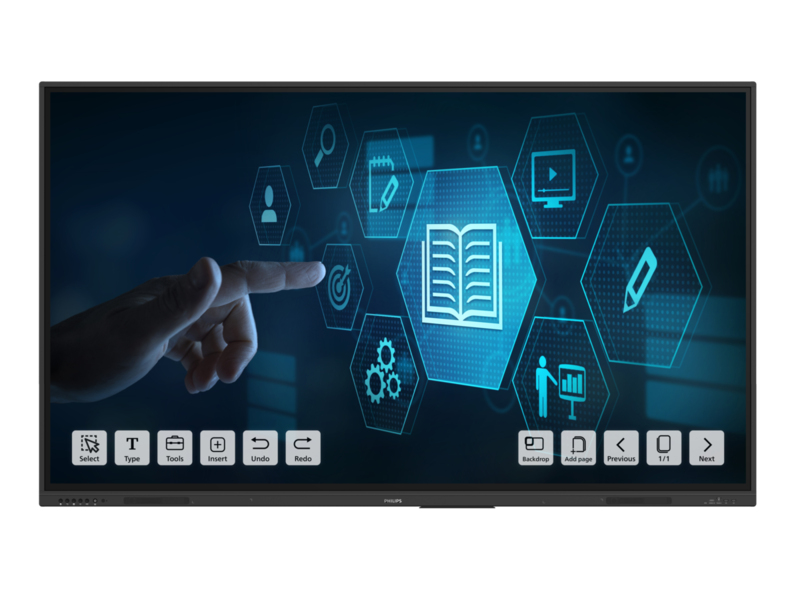

Inspire agile collaboration with whiteboard mode. Simply activate this feature to turn your display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on screen can then be streamed back to your laptop for easy printing or file sharing.

Wireless screen sharing

Display four feeds on the one screen. Wireless screen sharing allows you to connect up to 64 devices at the same time for quick content switching when you need it. Use your existing Wi-Fi network to instantly and securely connect devices, or the Interact dongle to connect guest speakers and remote access students logged in using an external network.

Small image 02

CMND & Control for connected campus displays

Run your display network over a local (LAN or RF) connection. CMND & Control allows you to perform vital functions like updating software and settings, as well as monitoring display status. Whether you’re in charge of one TV or more, CMND & Control makes managing your fleet easy.

EDUCATION - School Sixth Form - T-line

Infrared Touch with USB Plug-and-Play

Experience a better way to control content. Simply plug your existing laptop or desktop to enable touch functionality on the big screen instantly. USB plug-and-play means that no installations or configuration is required, with options to plug removable devices from the side or having them fixed from the back.

Video conferencing

Built-in video conferencing makes video calls with single or multiple people quick, reliable and easy. Simply connect a compatible camera and use the included software, or connect via third party apps such as Skype, Zoom and others to make your calls.

FailOver always on technology

Never miss a moment. FailOver lets your Philips professional display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your classroom is always switched on.


Corporate image13
INTERACTIVE EDUCATION DISPLAY FEATURING MULTI-TOUCH TECHNOLOGY

Philips E-Line 4152E

Inspire collaboration. Maximise engagement. This top-spec Philips E-Line touch display is powered by Android and features enhanced educational software and programs compatibility, 40 touchpoints, and a toughened anti-glare glass.

86BDL3152E00
INTERACTIVE EDUCATION DISPLAY FEATURING MULTI-TOUCH TECHNOLOGY

Philips E-Line 3152E

The Philips E-Line touch display maximises engagement and inspires collaboration with up to 40 touchpoints. Powered by Android and featuring a toughened anti-glare glass, it’s made to withstand heavy daily usage in the classroom.

Made for results

Picture/Display
Diagonal screen size (metric) 163.9
Diagonal screen size (inch) 64.5
Panel resolution 3840 x 2160
Optimum resolution 3840 x 2160 @ 60 Hz
Dynamic contrast ratio 500,000:1
Response time (typical) 8
Aspect ratio 16:9
Viewing angle (horizontal) 178
Viewing angle (vertical) 178
Pixel pitch 0.372 x 0.372 mm
Display colours 1.07 Billion
Picture enhancement 3/2 - 2/2 motion pull down
3D Combfilter
Motion compens. deinterlacing
Progressive scan
3D MA deinterlacing
Dynamic contrast enhancement
Panel technology ADS
Contrast ratio (typical) 1200:1
Operating system Android 11
OS UI resolution 3840 x 2160 @ 60 Hz
Brightness (after glass) 360
Brightness (after glass) 360
Supported Display Resolution
Computer formats 640 x 350, 70 Hz
640 x 480, 60, 67, 72, 75 Hz
800 x 600, 56, 60, 72, 75 Hz
832 x 624, 75 Hz
848 x 480, 60 Hz
960 x 720, 75 Hz
1024 x 768, 60, 70 Hz
1152 x 864, 60, 70, 75 Hz
1152 x 900, 66 Hz
1280 x 720, 60, 70 Hz
1280 x 768, 60 Hz, 75 Hz
1280 x 800, 60, 75 Hz
1280 x 960, 60 Hz
1280 x 1024, 60, 67, 75 Hz
1360 x 768, 60 Hz
1366 x 768, 60 Hz
1400 x 1050, 60, 75 Hz
1600 x 900, 60 Hz
1600 x 1200, 60 Hz
1680 x 1050, 60 Hz
1920 x 1080, 60 Hz
1920 x 1200, 60 Hz
3840 x 2160, 24, 25, 30, 60 Hz
1440 x 900, 60 Hz
720 x 400, 70 Hz
Video formats 480p, 60 Hz
720p, 50, 60 Hz
1080i, 50, 60 Hz
1080p, 50, 60 Hz
2160p, 50, 60 Hz
480i, 60 Hz
Connectivity
Video input DVI-D (x 1)
HDMI 2.0 (x 3)
USB 2.0 (x 3)
USB 3.0 (x 3)
USB-C (up to 65 W)
Audio input 3.5 mm mini jack (x 1)
Video output HDMI 2.0 (x 1)
Audio output 3.5 mm Mini Jack (x 1)
External control IR (in/out) 3.5 mm jack
RJ45
RS232C (in/out) 2.5 mm jack
Other connections OPS
micro SD
USB-B (x 3)
Convenience
Placement Landscape (18/7)
Screen-saving functions Pixel Shift, Low Brightness
Signal loop through RS232
IR Loop through
Ease of installation Smart Insert
AC Out
Network controllable RS232
RJ45
Keyboard control Lockable
Remote control signal Lockable
Other convenience Carrying handles
Operating conditions
Temperature range (operation) 0 ~ 40
Temperature range (storage) -20 ~ 60
Altitude 0 ~ 3000 m
MTBF 50,000
Humidity range (operation)[RH] 20–80% RH (No condensation)
Humidity range (storage) [RH] 5–95% RH (No condensation)
Power
Consumption (Typical) 170
Consumption (Max) 430 W
Standby power consumption <0.5 W
Mains power 100 ~ 240 VAC, 50 ~ 60 Hz
Power Saving Features Smart Power
Energy Label Class G
Sound
Built-in speakers 2 x 15 W
Accessories
Included Accessories Cleaning cloth (x 1)
AC Power Cord
AC Switch Cover
Cable clip (x 3)
DVI-I Cable (1.8 m) (x 1)
HDMI Cable (3 m) (x 1)
IR sensor cable (1.8 m) (x 1)
Philips logo (x 1)
Quick start guide (x 1)
Remote control and AAA batteries
RS232 cable
RS232 daisy chain cable (x 1)
Touch Pen (x 2)
USB A to B cable (3 m) (x 1)
USB cover and screws
Optional accessories Interact dongles
Miscellaneous
On-Screen Display Languages Arabic
Dutch
Danish
English
French
Finnish
German
Italian
Japanese
Norwegian
Polish
Portuguese
Russian
Spanish
Swedish
Simplified Chinese
Turkish
Traditional Chinese
Regulatory approvals CE
FCC, Class A
RoHS
CB
EAC
EMF
ETL
Warranty 5-year warranty
Multimedia Applications
USB Playback Video H.263
H.264
H.265
MPEG1/2
MPEG4
VP8
VP9
USB Playback Picture BMP
JPEG
PNG
USB Playback Audio AAC
MPEG
HEAAC
Interactivity
Multi-touch technology 0-gap Infrared touch
Touchpoints 20 simultaneous touch points
Plug and play HID compliant
Protection glass Anti-Glare
Tempered safety glass 7 MOHS
Blue light filter
Internal Player
CPU MTK 9970A
Memory 8 GB
Storage 32 GB eMMc
Wi-Fi 2G/5G/6G 2T2R
Dimensions
Set Width 1494.3
Set Height 883.2
Set Depth 99.5 mm(D_Max)/78.5 mm(D_Wallmount)
Set Width (inch) 58.83
Set Height (inch) 34.77
Set Depth (inch) 3.92 (D_Max)/3.09(D_Wallmount)
Bezel width 17.8 mm(T/R/L) x 31.7 mm(B)
Weight 44.26
Smart Insert mount 100 x 100 mm
6xM4L6
Wall Mount 400 x 400 mm
M8
Weight
Product with packaging (kg) 53.8
Product with packaging (lb) 118.61
Product without stand (kg) 44.26
Product without stand (lb) 97.58
The following are product notes:
1. Before using the product, please carefully read the manual in the accessory box and keep it for future reference.
2. Please use the power cord and accessories provided with the product.
3. Do not bend, twist or pull the power cord forcibly.
4. For the installation method, please follow the "Wall Mounting Installation Instructions" in the wall mounting bracket for installation.
5. If the product is not used for a long time, please turn off the power and remove the plug.
6. In order to avoid fogging of the product, please put the product in the same space (without power on) for 1 to 2 hours, let the temperature/humidity of the product be close to the temperature/humidity of the space before turning on the product.
