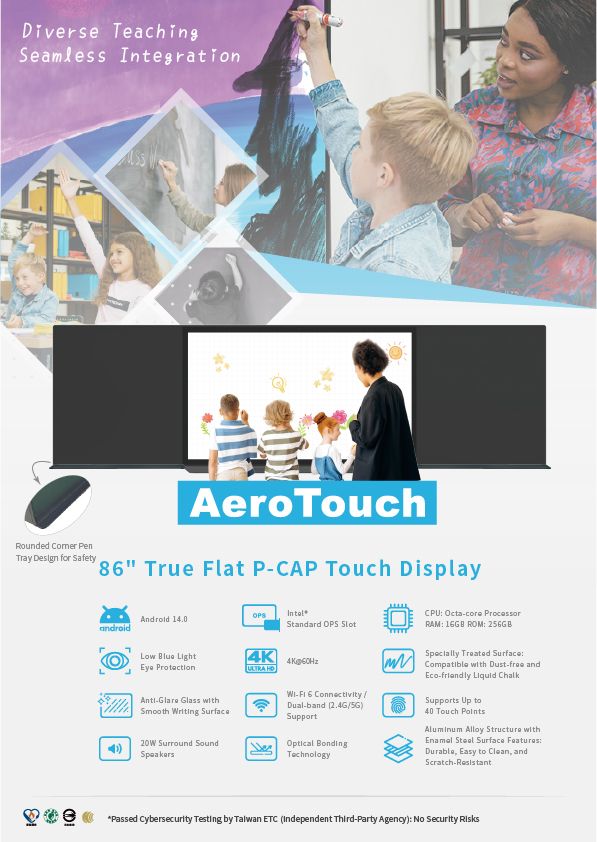

M2 Pro (AeroTouch 86" P-Cap Touch Display)

GM86E40JZD
尺寸
  • 86" NEW
  • The blackboard’s center frame is made of aluminum alloy, featuring an enamel-coated steel surface
    the new model highlights the enamel steel board.
    Easy to clean and simple to maintain
    Excellent writing performance and strong stain resistance
    Compatible with water-soluble chalk
    Anti-glare glass with a matte surface for smooth writing
    Low blue-light for eye protection

Optional Blackboard

Nano-coated Galvanized Steel Board (Optional)
Enamel (Porcelain) Steel Board (Optional)

Optional System

iPTS – Cloud Whiteboard Live Broadcasting (Optional)
iMDS – Remote Centralized Control Management System (Optional)

AVACAST Wireless Screen Casting & Video Conferencing

AVACAST Wireless Casting – Software
AVACAST Wireless Casting – User Manual

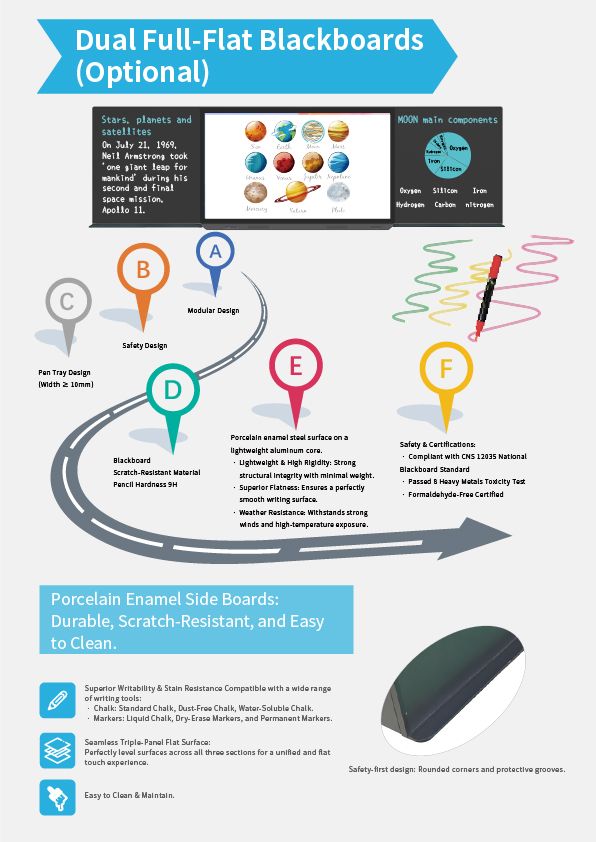

Panel Material Introduction

With the intuitive interface of a large interactive touch LCD display, teachers can use cross-platform whiteboard annotation software and wireless casting features without the need for a computer. This enhances student–teacher interaction (Interactivity), integrates diverse learning resources (Integration), and inspires creativity and engagement (Inspiration), making it an essential tool in the flipped classroom.

  • Modular Design
  • Safety Design
  • Chalk Tray Design (Width ≥ 10 mm)
  • The center frame of the blackboard is made of aluminum alloy and aerospace-grade composite materials.
  • Certified according to national blackboard inspection standards, compliant with CNS 12035 specifications.
  • Passed eight heavy metal non-toxicity tests and formaldehyde-free inspection standards.
Long-press with two fingers to activate the floating ball.
Five-finger gesture to put the screen to sleep.

  • iPTS Interactive Teaching System
  • iMDS Remote Centralized Control Management System

Grease-decomposition Enzyme Cleaning for Blackboard

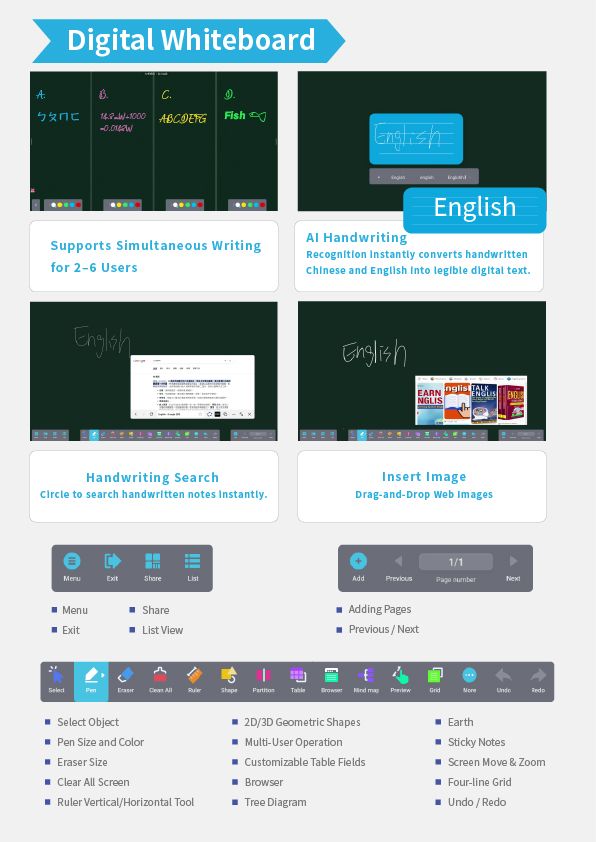

Whiteboard Writing Features
  • Select Object
  • Brush Size and Color
  • Eraser Size
  • Clear All Content
  • Ruler Tools (Vertical & Horizontal)
  • 2D/3D Geometric Shapes
  • Multi-user Simultaneous Operation
  • Custom Table Fields
  • Browser
  • Tree Diagram (Mind Map)
  • Globe
  • Sticky Notes (or Notes)
  • Canvas Panning and Zooming
  • Text Grid (Four-Line Writing Guide)
  • Undo / Redo
Wireless Casting
  • Multi-screen Sharing
    Teaching Mode — Wireless Made Truly Convenient
  • Multiple Screens
    Window Sharing & Split View — Easy and Simple
  • Reverse Control Annotation
    Two-way Remote Control with Synchronized Activation

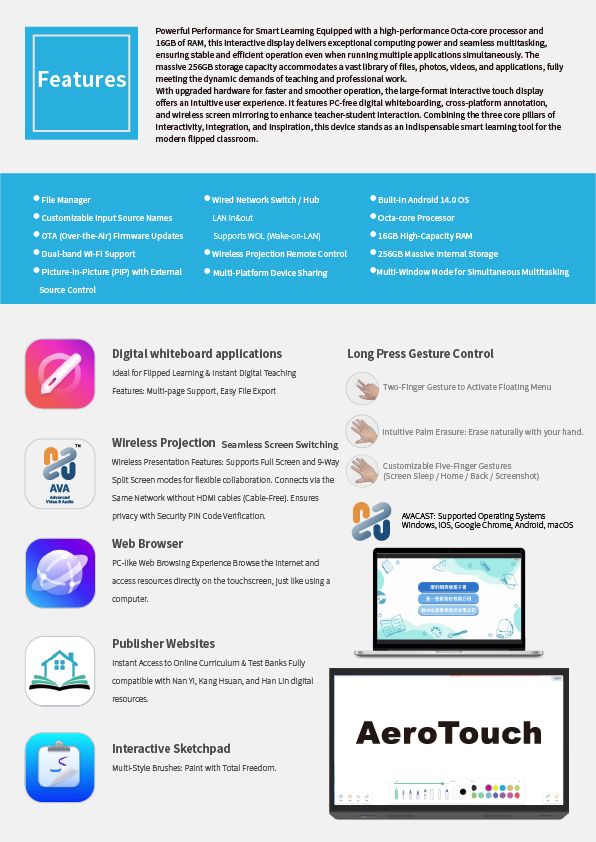

Software & Hardware Features
  • File Manager
  • Customizable Input Source Names
  • Network OTA Updates
  • Dual-band Wi-Fi

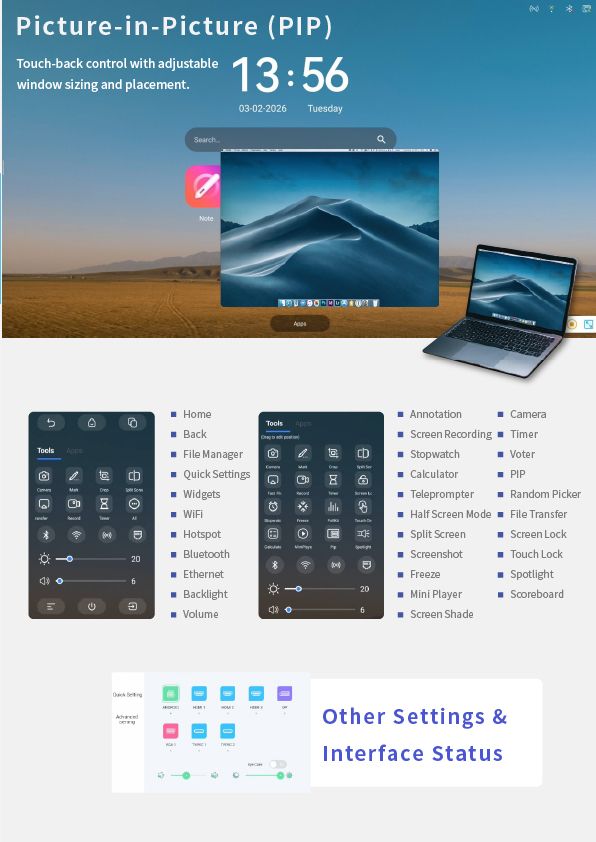

  • Picture-in-Picture (External Source with Reverse Control)
  • Wired Network Sharing Hub
  • Wireless Casting Remote Control
  • Multi-platform Device Sharing
  • Built-in Android 14.0 System
  • Octa-core Processor
  • 16GB High-capacity Memory
  • 256GB Large Storage Capacity
  • Multi-window Mode allows multiple functions to run simultaneously
Brand and Model Number AeroTouch-GM86E40JZD
LCD Panel
Size 86"
Resolution 3840 x 2160
Aspect Ratio 16:9
Brightness 450cd/㎡
Contrast Ratio 4000:1
Viewing Angle (Horizontal / Vertical) 178°/178°
Response Time 8 ms
Backlight Direct-lit LED
Backlight Lifetime 50,000 hours
Touch
Technology & Touch Points 40-point Capacitive Touch
Touch Resolution 32767 x 32767
Supported Operating Systems & Touch Points Win 11/10/8/7: 40 points
Win XP: 1 point, Mac: 1 point
Android: 20 points
Linux: 1 point, Chrome: 1 point
Tempered Glass AG Anti-glare Tempered Glass, 4 mm / 9H Hardness
Speakers
Power Output Built-in 20W × 2
Device Power Consumption
Input Voltage AC100-240V 50/60Hz
Typical Power Consumption ≦ 450W
Standby Power Consumption ≦ 0.5W
Environmental Conditions
Operating Temperature / Humidity 0-45 ℃/10-90% RH
Input Ports
Video (Analog) VGA x 1

Video (Digital)

HDMI 2.0 x 3, DP 1.2 x 1
Audio Audio in (3.5mm) x1, Mic (3.5mm) x1
Multimedia (Android) USB 3.0 Type-A × 5, USB-C × 2, Micro SD Card Slot × 1, USB 2.0 Type-A × 1
Multimedia (All Channels) USB 3.0 A-type x 5
LAN RJ 45 x1
Screen Control RS232C (In/Out) x1
OPS Computer Slot Supports up to 4K/60fps
Output Ports
Video (Digital) HDMI 2.0 x1
Audio SPDIF (Optical) x 1, Earphone x 1
Touch USB3.0 B-Typex3
LAN RJ 45 x1
Wireless Receiver
Wi-Fi Wi-Fi 6
Dimensions & Weight
Dimensions (W × H × D) 4500 x 1204x126mm(Main unit: 1977 × 1204 mm; Two blackboard panels: 2523 × 1155 mm; Wall-mount thickness not included: 95.4 mm)
VESA Mounting Holes 800 x 400 mm
Net Weight 96 kgs
Android
System Version Android 14.0 (Octa-core Processor A73 × 4 + A53 × 4 / 1.5GHz, Max 2.2GHz)
RAM 16 GB
ROM 256 GB

  • US Power Cord 3m × 1
  • HDMI Cable 3m × 1
  • Touch USB Cable 3m × 1
  • Remote Control × 1
  • Touch Pen × 2
  • Quick Start Guide × 1
  • M8 Screws × 4
  • Wall Mount Bracket × 1
  • Chalkboard Tray × 2
The following are product notes:
1. Before using the product, please carefully read the manual in the accessory box and keep it for future reference.
2. Please use the power cord and accessories provided with the product.
3. Do not bend, twist or pull the power cord forcibly.
4. For the installation method, please follow the "Wall Mounting Installation Instructions" in the wall mounting bracket for installation.
5. If the product is not used for a long time, please turn off the power and remove the plug.
6. In order to avoid fogging of the product, please put the product in the same space (without power on) for 1 to 2 hours, let the temperature/humidity of the product be close to the temperature/humidity of the space before turning on the product.
